Giada F109D Intel® N97

Giada F109D Intel® N97

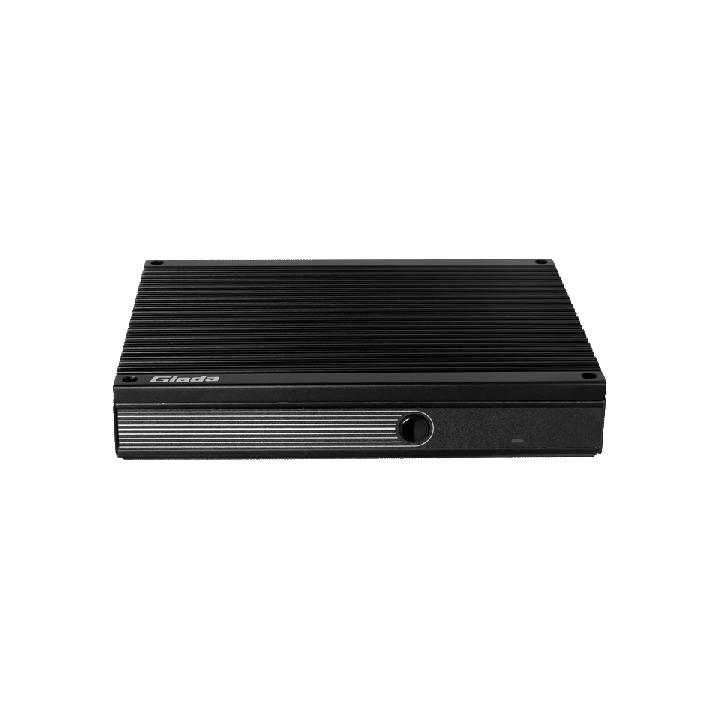

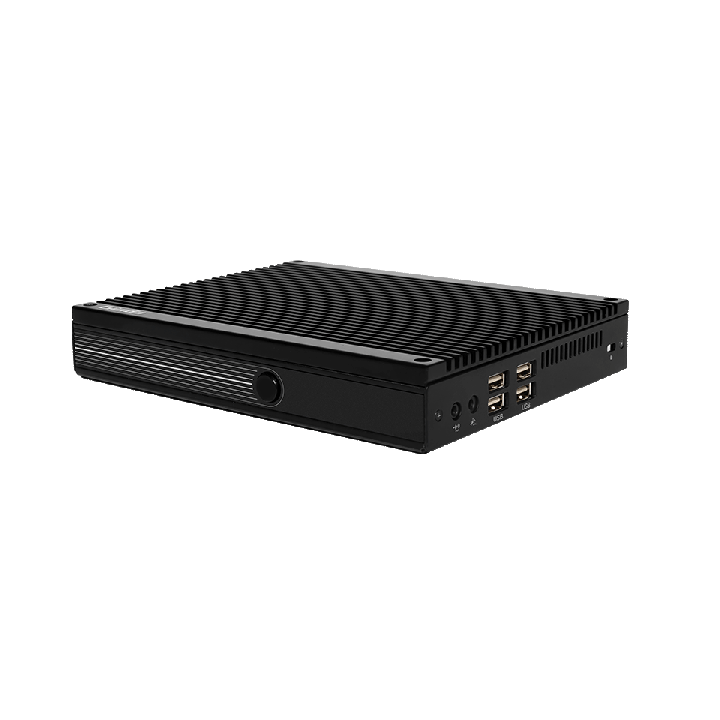

F109D Booksize, Fanless Player Intel Twin Lake Inside Support 4K Display

Intel®Twin Lake Processors
Giada F109D adopts Intel® Twin Lake processors, featuring low-power range from 6-15W. The book-size embedded PC is especially designed for digital signage and kiosk applications.

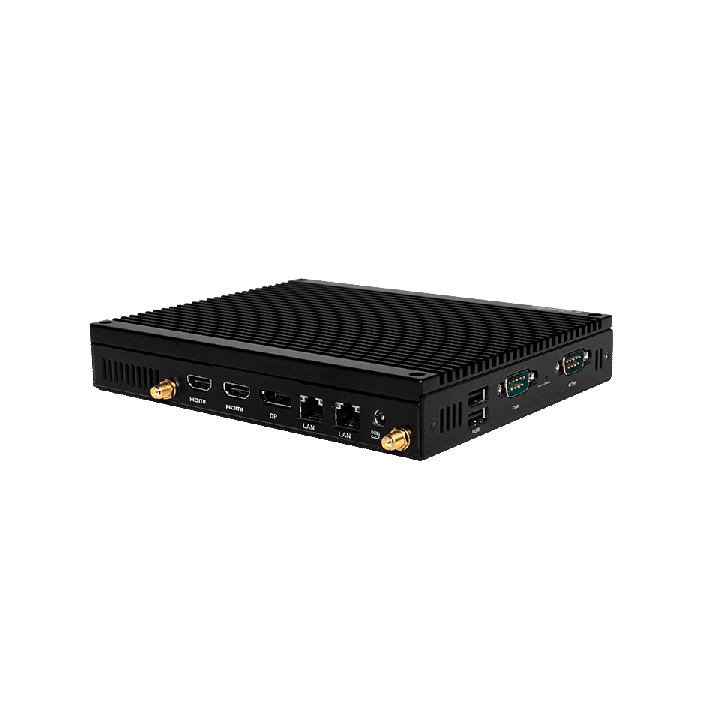

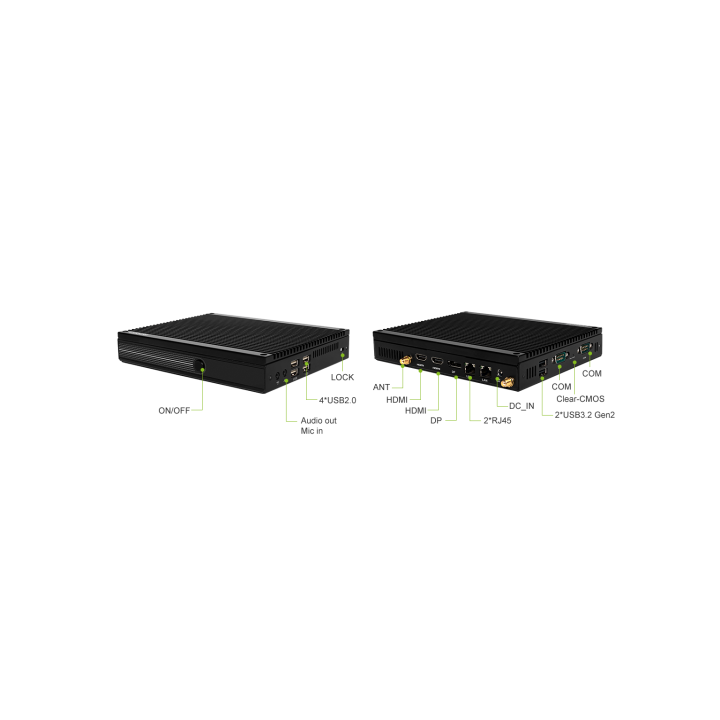

Rich I/O Ports
The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can be easily integrated in vending machine, self-service and check-in kiosks.

Supporting 3 Display Outputs
The digital signage player adopts Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada? device applicable in mission critical applications.

Intel® Processor N97
1 x SO-DIMM DDR5-4800 MHz
Intel® UHD Graphics (97)
1 x DP (Max.4096 x 2160 @60Hz)
2 x HDMI (Max.4096 x 2160 @60Hz)
2 x Realtek RTL 8111H Gigabit Ethernet
2 x USB3.2 Gen2, 4 x USB2.0
2 x RS232
DC-IN, 19 V/2.37 A
189.6mm x 148.3mm x 31.7mm
