Giada BQ614 / B760

Giada BQ614 / B760

BQ614 7 x USB Desktop PC
Intel 12th/13th/14th Gen. CPU 1 x 2.5GbE RJ45, 1 x 1GbE RJ45

Supporting 3 Displays
Supporting 8K Resolution
With Intel® UHD Graphics 770 or 750 or 730, BQ614 supports 3 displays. Two of the displays are an HDMI 2.0a (4096x2304@60Hz) and a DisplayPort 1.4 (7680x4320 @60Hz), or optional a VGA port (2048 x 1536@60Hz). Besides, its USB type-C port provides DP1.4 signal supporting up to 8K resolution.

Intel® B760 Chipset
The BQ614 adopts Intel® B760 chipset, it can support Intel® 12th/13th/14th generation socket type processors. It supports dual-channel DDR5 memory and it is flexible to extend the NVMe SSD and 1 x SATAIII storage.

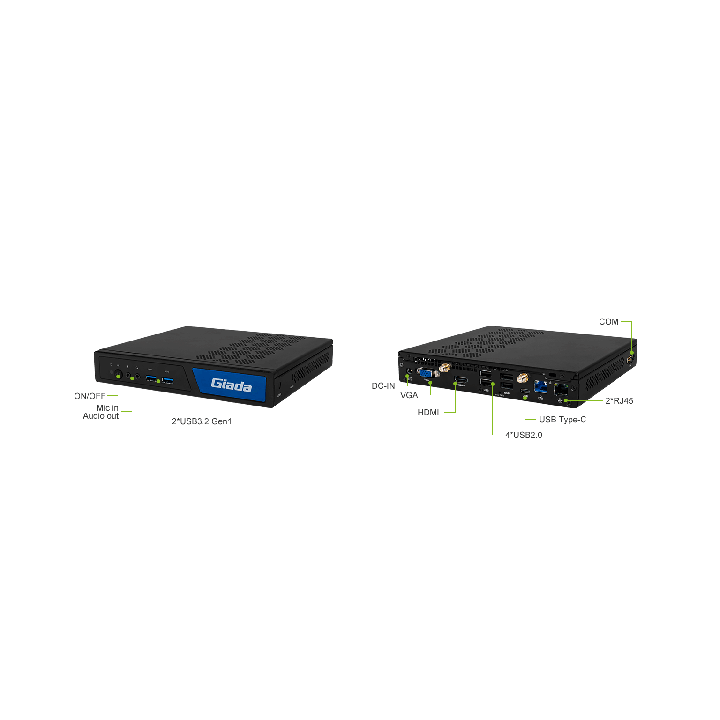

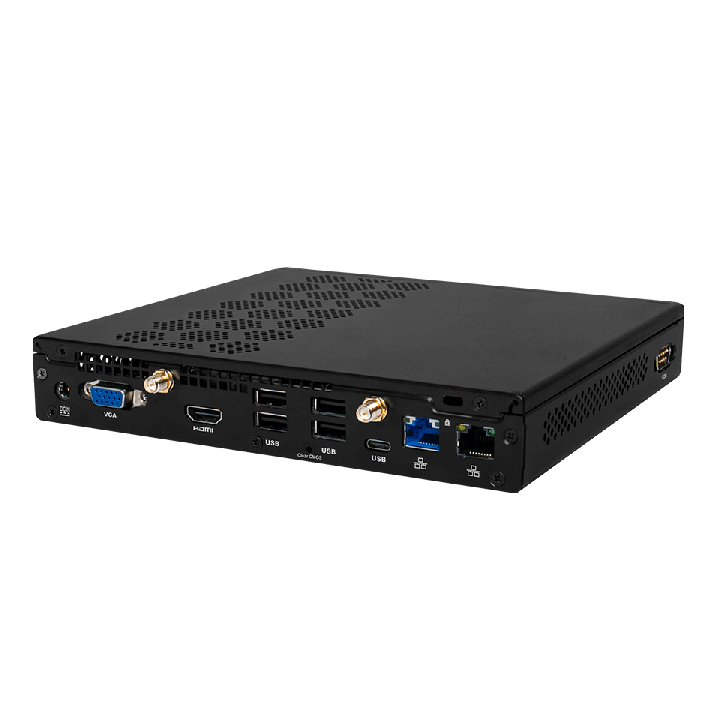

Rich I/O Ports
Supporting Intrusion Detection
The PC measures only 1.24L, yet supports rich I/O ports, including 6 x USB Type-A and dual LAN ports. With a micro switch, it can detect removal of the computer cover. Once the chassis was opened, the BIOS will record (won't alarm) and warn you next time when the system starts up.

Intel® LGA1700 Socket 12th/13th/14th Gen. processors
Intel Chipset B760
Intel® UHD Graphics 730/770
2 x SO-DIMM DDR5-5600 MHz, Up to 96 GB
1 * 2.5" SATA III
1 x M-Key M.2 (2280) PCIe3.0 X4 for SSD
1 x B-Key M.2 (3042/3052) for 4G/5G, 1 x SIM Slot
1*Gigabit; 1*2.5Gigabit;
1 x E-Key M.2 (2230) for Wi-Fi/BT
1 x USB Type-C3.2 Gen2 (Supports DP1.4 output)
1 x USB3.2 Gen2, 1 x USB3.2 Gen1, 4 x USB2.0
1 x RS232
1xHDMI, 1xDP( Colay with VGA)
200 mm x 185 mm x 35.5 mm
