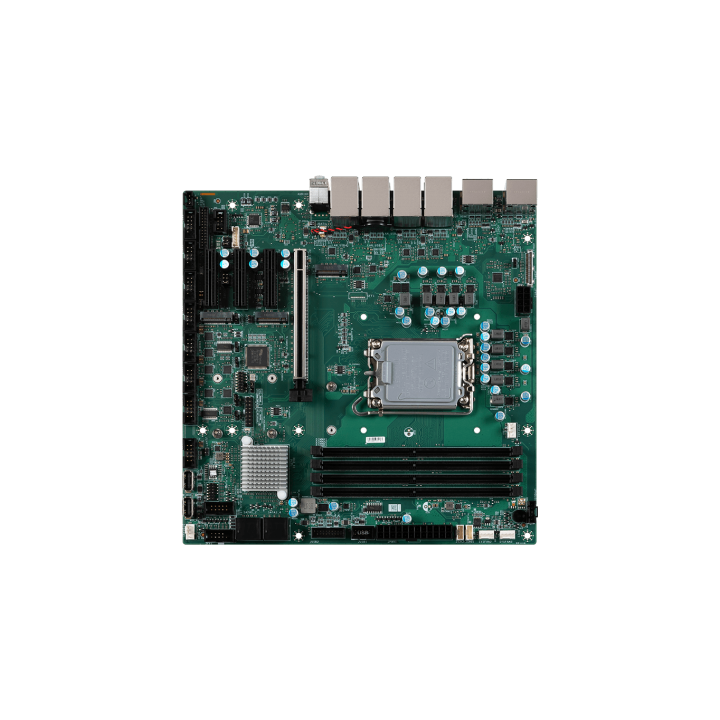

MS-CF09
Micro-ATX with 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Alder Lake-S, Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor & Intel® R680E/Q670E/H610E for High-Performance Solution
Intel® 14th/13th/12th Raptor Lake-S Refresh/Alder Lake-S Series with R680E/Q670E/H610E
4 DDR5 4400 MT/s ECC/non-ECC UDIMM slots up to 128GB

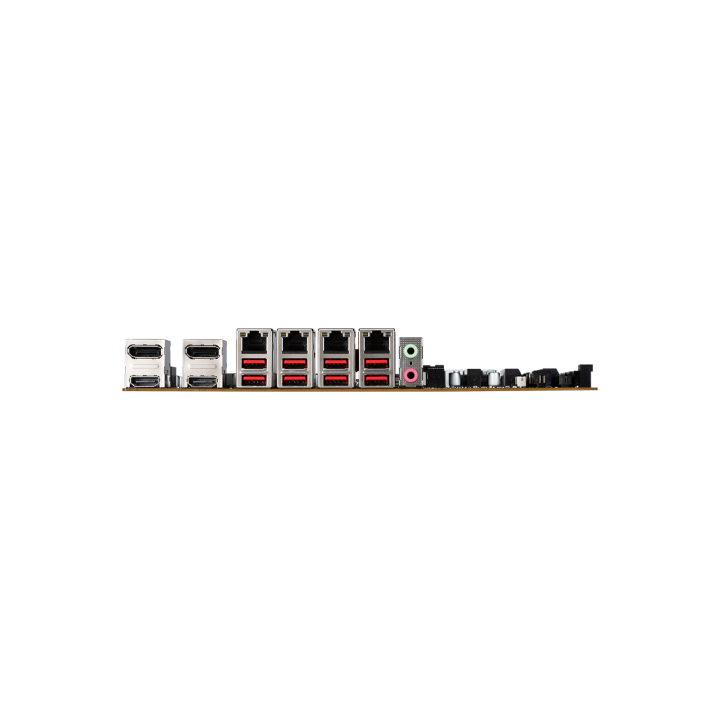

Quadruple independent displays: 2DP, 2HDMI, eDP
4 2.5GbE LAN with RJ-45
1 PCIe x16 (Gen 5) Slot, 2 PCIe x4 (Gen 4), 1 PCIe x4 (Gen 3) slots
3 M.2 M key, 4 SATA 3.0 for storage
SATA RAID 0/1/5/10
8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 4 USB 2.0, 6 COM (6 RS-485), GPIO, PS/2, Audio, 3 System FAN
Onboard TPM 2.0
SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
ATX Power

Intel® R680E Express
Socket (LGA1700)
4 x 288-pin UDIMMs Dual-channel DDR5 (ECC/non-ECC) 4400 MHz Up to 128GB
4 independent displays 2xHDMI, 2xDisplayPort
4 x Intel® i226-LM 2.5GbE LAN
1xPCIe x16, 3xPCIe x4
244 x 244mm (uATX)
