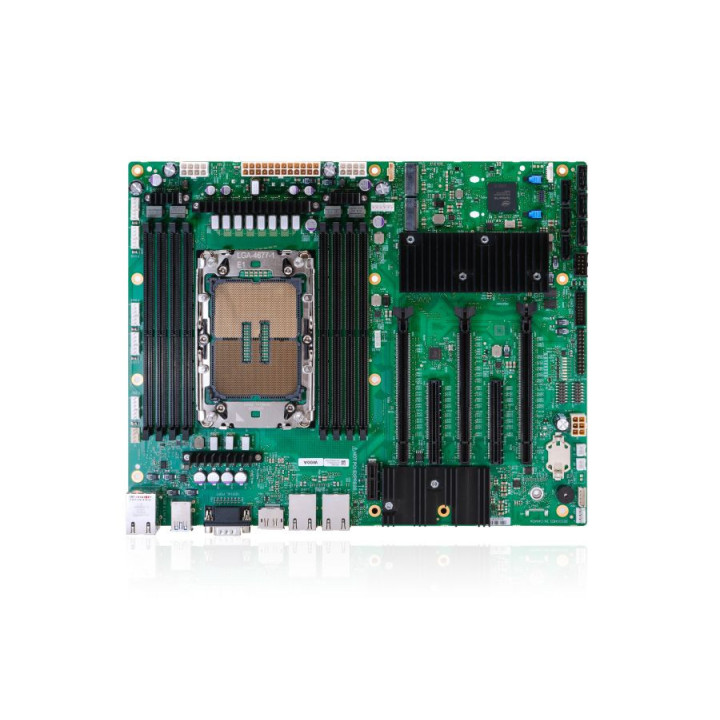

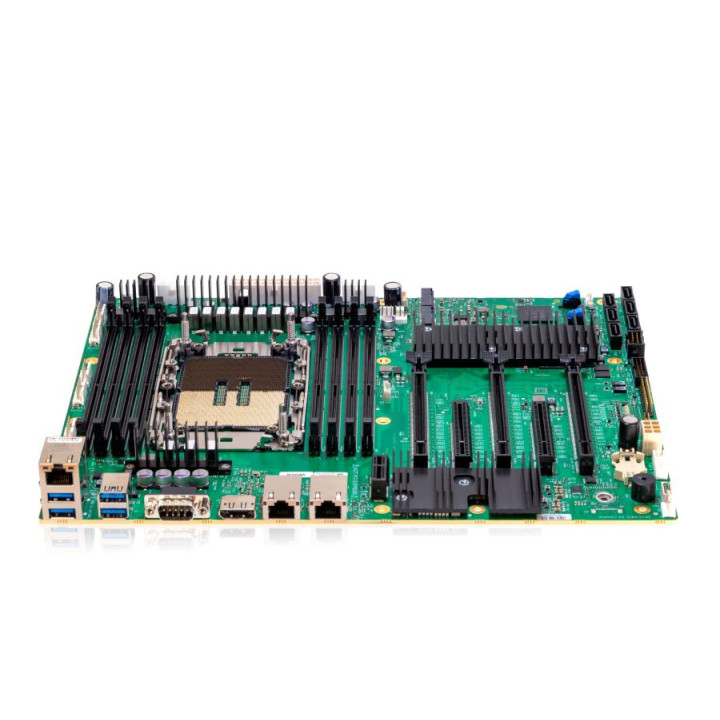

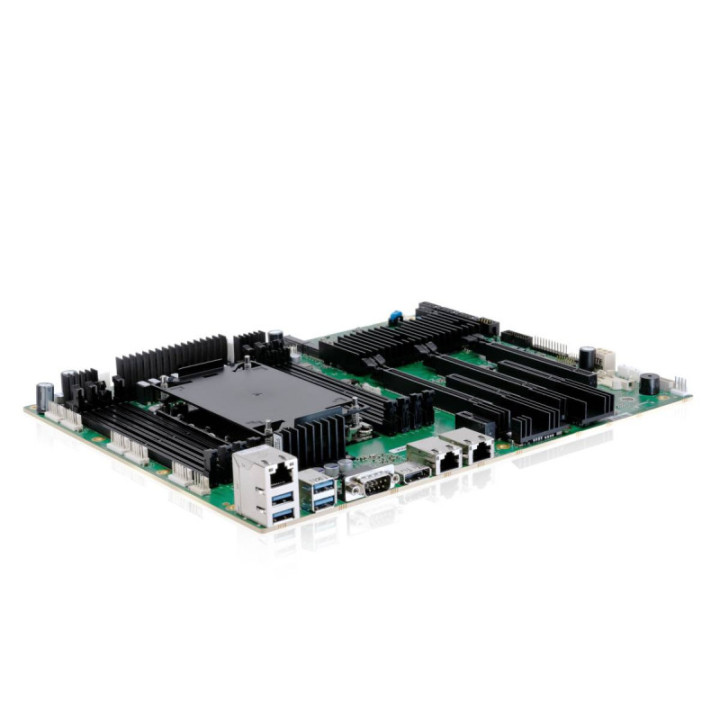

MB Kontron ATX K9051-C

MB Kontron ATX K9051-C

The server-class K9051 ATX motherboard is paired with the Intel® C741 chipset and supports Intel® 4th/5th Gen Intel® Xeon® scalable processors with up to 64 cores. With memory density up to 768 GByte and 5 PCIe Gen 5 expansion slots, today’s most demanding applications including AI, imaging, sequencing and industrial processing are possible. The K9051-C741 ATX supports board management and monitoring via ASPEED A2600 using OpenBMC. The motherboard is designed for continuous 24/7 operation for 10 years in demanding environments.

Intel® 4th/5th Generation Xeon® scalable processor
Intel® C741 Chipset
8x DDR5 5600 MT/s RDIMM Independent Channels
3x PCIe Gen5 x16 slots and 2 x PCIe Gen5 x8 slots
2x 10GBASE-T RJ45 Ethernet ports

Up to 64 cores with maximum TDP 350W
DDR5 memory up to 5600 MHz RDIMM, up to 768 GByte
5x PCIe Gen 5 expansion slots
Dual LAN Intel® X710 10 GbE including teaming
