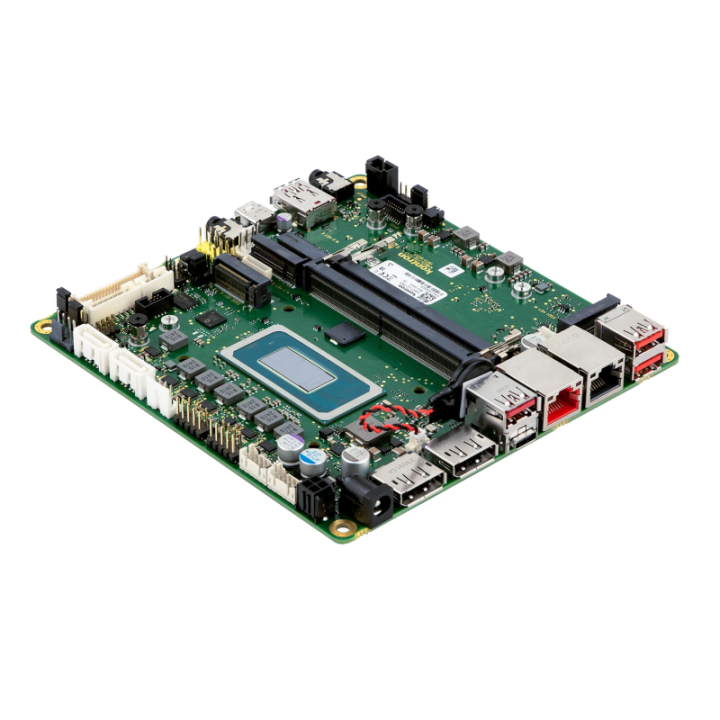

MB Kontron mSTX K4021-U2 155U

MB Kontron mSTX K4021-U2 155U

The Industrial Motherboard K4021-U mSTX is based on the latest Intel® Core™ Ultra processors with powerful UHD Gen12 graphics using Intel® Xe architecture. There are two DisplayPorts, one DisplayPort™ via front USB-Type-C and one Display Port™ via rear USB Type-C with Thunderbolt 4 support plus onboard connectors for Embedded DisplayPort™ and Dual-Channel 24bit LVDS panels.

Four independent displays with up to 4K display resolution or up to two with 8K are supported. The K4021-U is equipped with four M.2 (Storage and Wifi) connectors and in addition to this offers many other connectivity options like GPIO, two COM ports, Thunderbolt 4, and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C the K4021-U is applicable in many vertical markets.

Latest DDR5 memory technology for best-in-class system performance
Intel® Graphics - driven by Intel® Xe architecture (within SoC)
Up to four concurrent 4K60 HDR displays or two 8K displays / Thunderbolt 4 support
Dual Channel LVDS (24 Bit) and eDP V1.4b (4 K) onboard
New integrated NPU for dedicated AI acceleration with up to 20x performance/watt improvement
