MB Kontron iTX K3836-R

MB Kontron iTX K3836-R

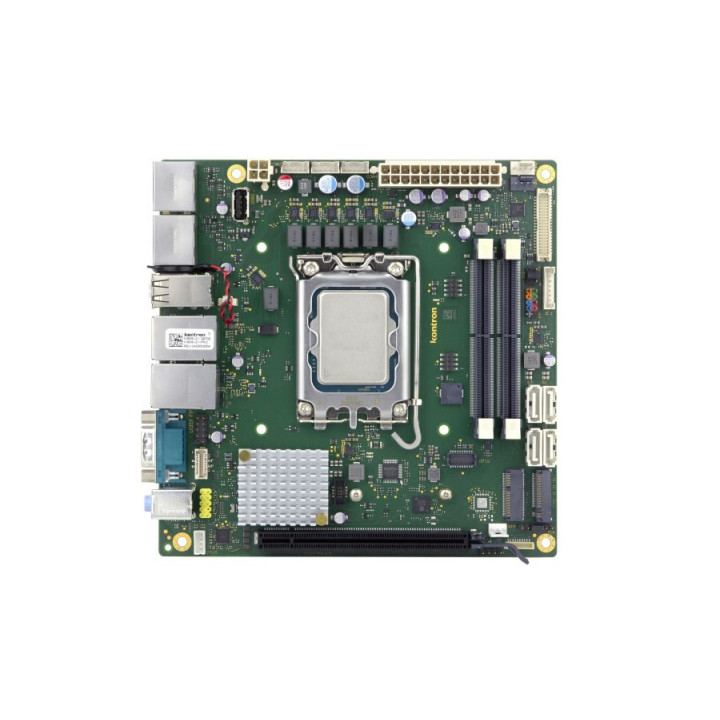

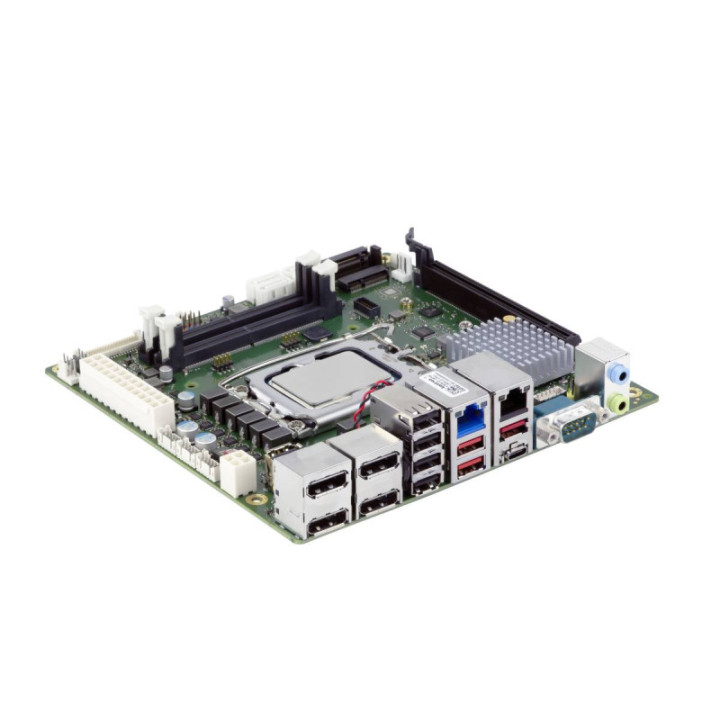

K3836-Q/R mITX
industrial Motherboard supporting Intel® Core™ Processors (14th Gen/Series 2)
The K3836 mITX motherboard is the successor to the prosperous D3633-S. It combines the proven functionality of its popular forerunner with the latest Intel® Core™ processor generation and latest standards.

Developed and produced in Germany, this motherboard offers two configuration options: The K3836-R is equipped with the high-performance Intel® R680E chipset with ECC support for mission-critical applications. The K3836-Q has the equally powerful Q670 chipset onboard.

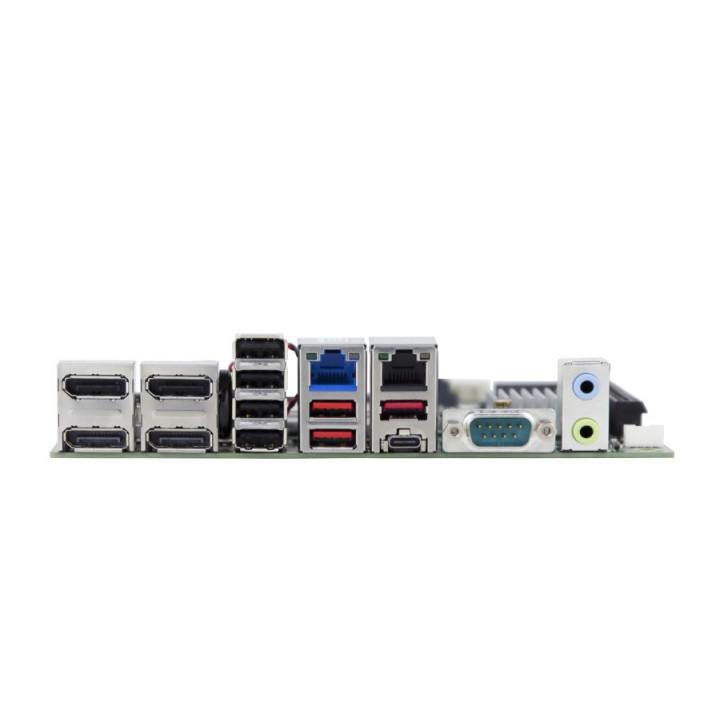

Unleash unparalleled connectivity with the K3836, featuring 2x Intel® LAN (1x 2.5 GbE), PCIe x16 Gen5, multiple USB ports, M.2 or Display Ports supporting graphics up to 8K resolutions and much more. It is particularly reliable thanks to 24/7 continuous operation at temperatures up to 60° C. Therefore, it can be used for various applications in the fields of industry, medicine, infotainment and more.

Latest DDR5 memory technology for best-in-class system performance
Intel® UHD Graphics 7xx driven by Xe Architecture; DisplayPort™, eDP-, and LVDS- support
Dual LAN 1GbE/2.5GbE incl. Teaming and TSN support
M.2 Key-M & Key-E; Powerful USB 3.2 Gen2
Combined ATX Standard PSU or Single 12V Supply
