PB Giada IB3-771 (8GB/128Gb eMMC)

PB Giada IB3-771 (8GB/128Gb eMMC)

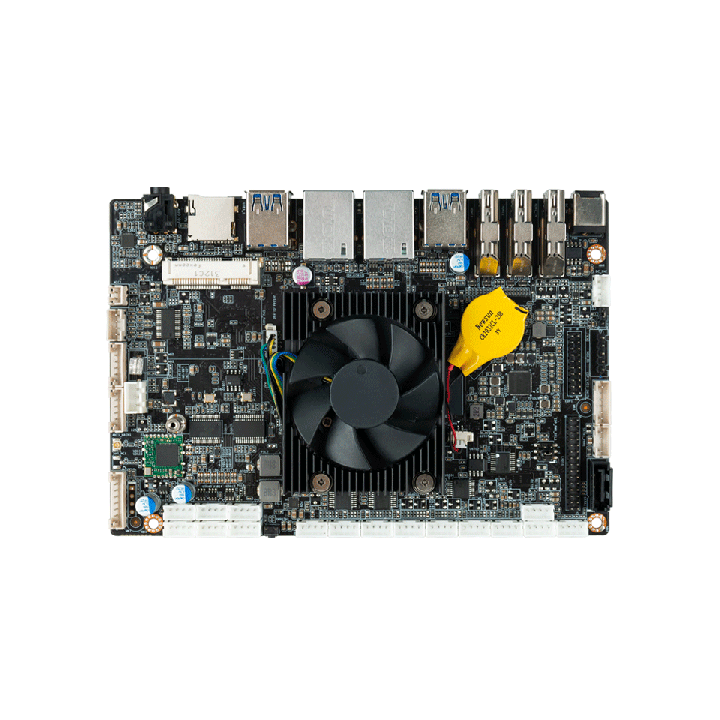

IB3-771 SFF Motherboard Android 12 Supporting 8K@60 Hz

Rockchip RK3588 Processor
The ARM-based small form-factor motherboard is equipped with RK3588 CPU, which integrated a build-in NPU supports INT4/INT8/INT16/FP16 hybrid operation and its computing power is up to 6TOPs. This embedded SBC features with onboard 8GB dual-channel LPDDR4x memory, supports eMMC5.1 onboard storage, and provide a SATA3.0 connector.

Supporting 8K Display
The intergrated ARM Mali-G610 MP4 GPU can delivery up to 1x 8K (7680 x 4320 @60Hz) resolution via. a HDMI2.1 video outputs. It supports 2x HDMI outputs and a LVDS/eDP connnector, and provide a HDMI-IN input. The IB3-771 supports H.265/H.264/AV1/AVS2 video decoder.

Supporting Android 12
The Android 12 OS can be used in a variety of applications, such as digital signage, edge computing, kiosks and other AIoT solutions.

Rockchip® RK3588
4 Cores Cortex-A76 & 4 Cores Cortex-A55
TDP 15 W
1 x HDMI (Max.7680 x 4320 @60 Hz)
1 x HDMI (Max.3840 x 2160 @60 Hz)
Mali-G610 MC4
OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
8 GB, Onboard LPDDR4x
128 GB, Onboard eMMC
DC-IN, 12 V
160 mm x 108 mm (6.30” x 4.25”)
