IB3-761 3.5inch SBC Android 11 Supporting 4K@60 Hz

Rockchip RK3568 Processor

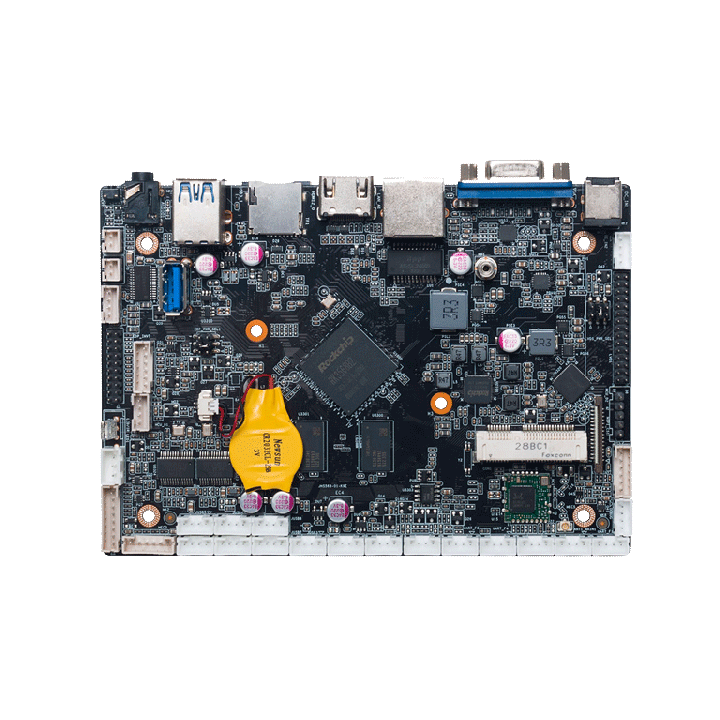

The ARM-based 3.5inch single board computer(SBC) is equipped with Quad-core Cortex-A55 Rockchip RK3568 CPU, frequency up to 2.0GHz, which integrated a build-in NPU with up to 1TOPs AI computing power.It supports onboard dual channels DDR4 memory, eMMC5.1 storage and dual band Wi-Fi, Bluetooth 4.2.

Supporting 4K Display
The intergrated ARM Mali-G52 GPU can delivery up to 4K (3840 x 2160 @60Hz) resolution via. a HDMI2.0 video outputs. It supports 1x HDMI and 1x VGA outputs, and provide LVDS/eDP connnector for display. The IB3-761 supports H.265/H.264/AV1/AVS2 video decoder.

Supporting Android 11
The Android 11 OS can be used in a variety of applications, such as digital signage, edge computing, kiosks and other AIoT solutions.

Rockchip® RK3568 4 Cores Cortex-A55
GPU Mali-G52
2 GB, Onboard DDR4 , 32 GB, Onboard eMMC
DC-IN, 12 V
146 mm x 103 mm (5.75” x 4.02”)
Android 11
