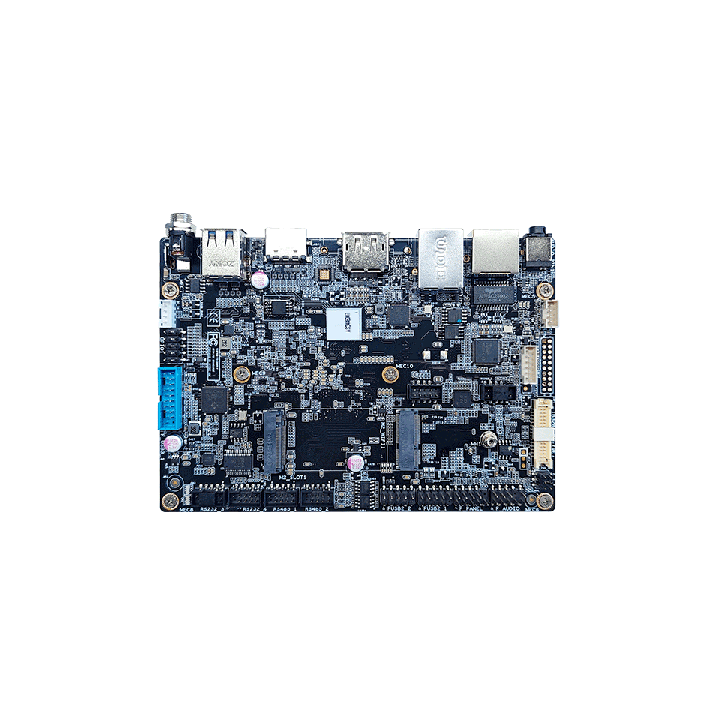

PB Giada IB3-281-N97

PB Giada IB3-281-N97

IB3-281 3.5 Inch SBC Intel Alder Lake-N Inside 2.5 Gbps Ethernet

Adopting Intel® Alder Lake-N CPU
The 3.5-inch Single Board Computer IB3-281 is powered by Intel® Alder Lake-N processors, which are known for their high performance and efficiency. The Giada IB3-281 with onboard DDR5 memory. It's an optimized solution for upgrading embedded and industrial applications to future-proof Kiosk n-vehicle audio & video control and industrial automation applications.

Versatile connectivity
Despite its 3.5inch form factor, the IB3-281 offers HDMI and LVDS display options, along with a range of connectivity options, including a 2.5GbE LAN port and a 1GbE LAN port, 4 x USB3.2, 4 x COM, 4 x GPI and 4 x GPO.

Wide-range Temperature & Voltage
The Giada IB3-281 industrial SBC can operate within a wide temperature range of -20℃ to 60℃, making it suitable for use in various rugged environments. Also with wide voltage (12 V~24 V) range, the signage player is suitable for a variety of outdoor applications, including bus stop displays, drive-through menus, digital billboards, and wayfinding systems.

Intel® processor N97 4 Cores
1 x HDMI (Max.3840 x 2160 @60 Hz)
1 x DP (Max.4096 x 2160 @60 Hz) colay VGA
1 x Intel Ethernet Controller I226-V
1 x Intel Ethernet Controller i210-AT
146 mm x 102 mm (5.75” x 4.02”)
Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
