10-Port Hardened Industrial Gigabit PoE+ DIN-Rail

10-Port Hardened Industrial Gigabit PoE+ DIN-Rail

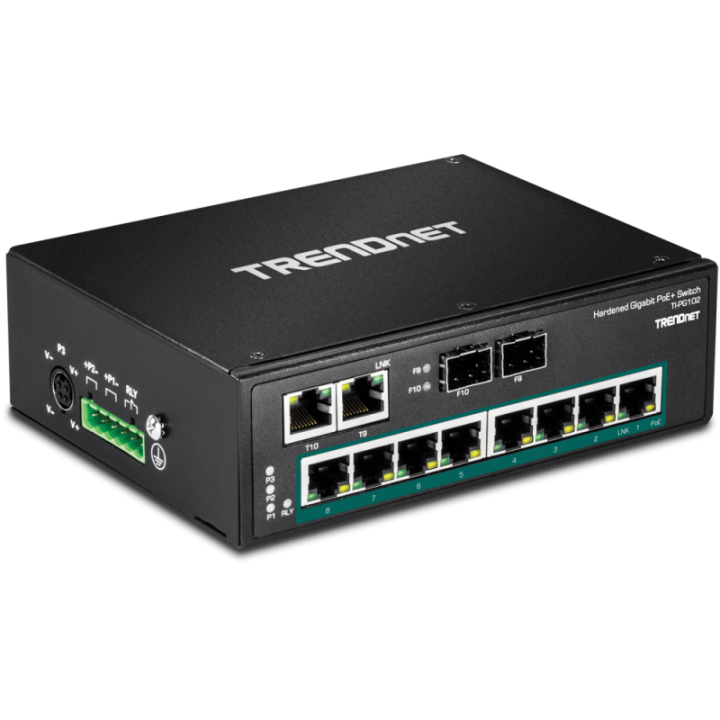

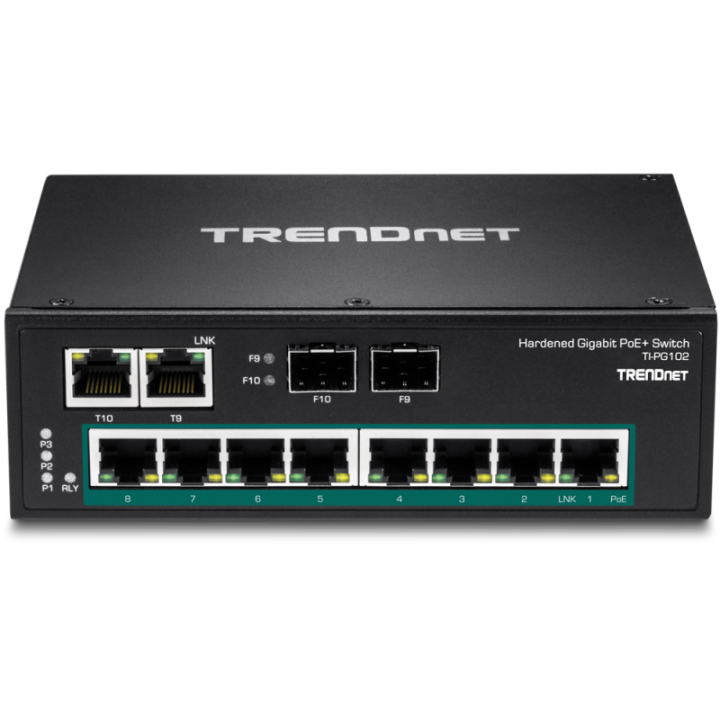

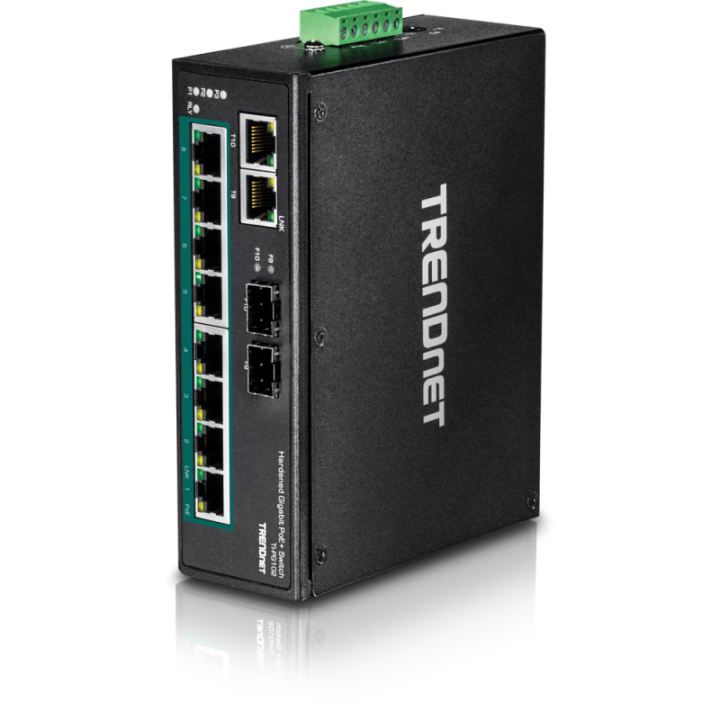

TRENDnet’s 10-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG102, has eight gigabit PoE+ ports with a 240 W PoE power budget, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

8 x Gigabit PoE+ ports
2 x Gigabit RJ-45 / SFP shared ports
240 W PoE power budget
20 Gbps switching capacity
Hardened IP30 rated metal switch

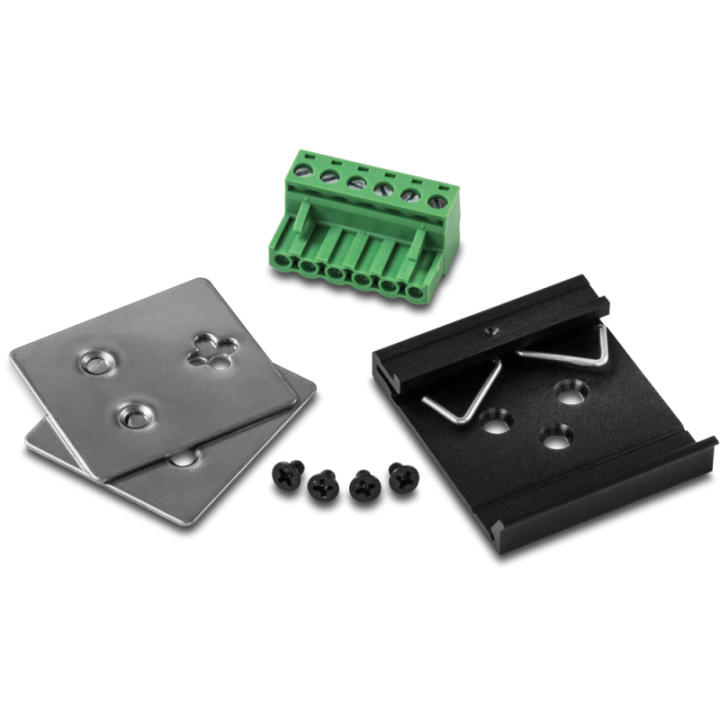

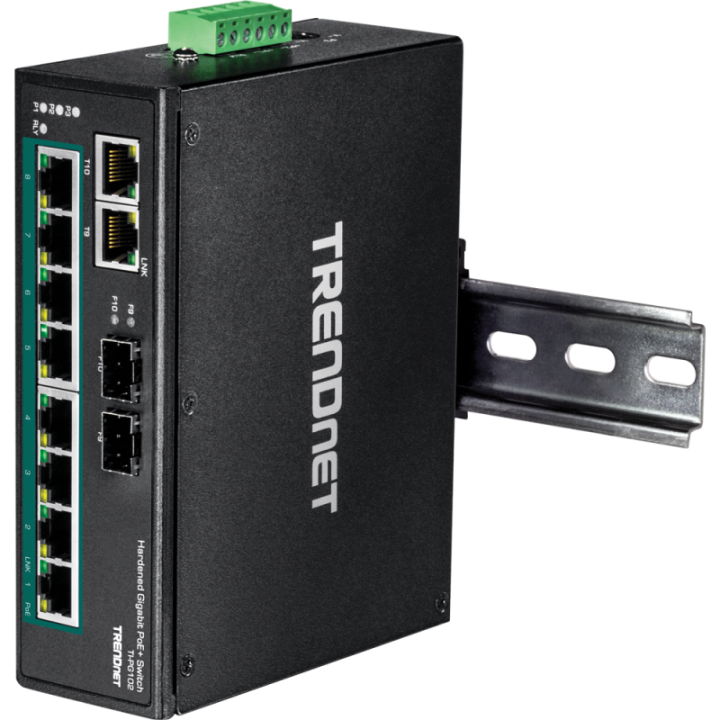

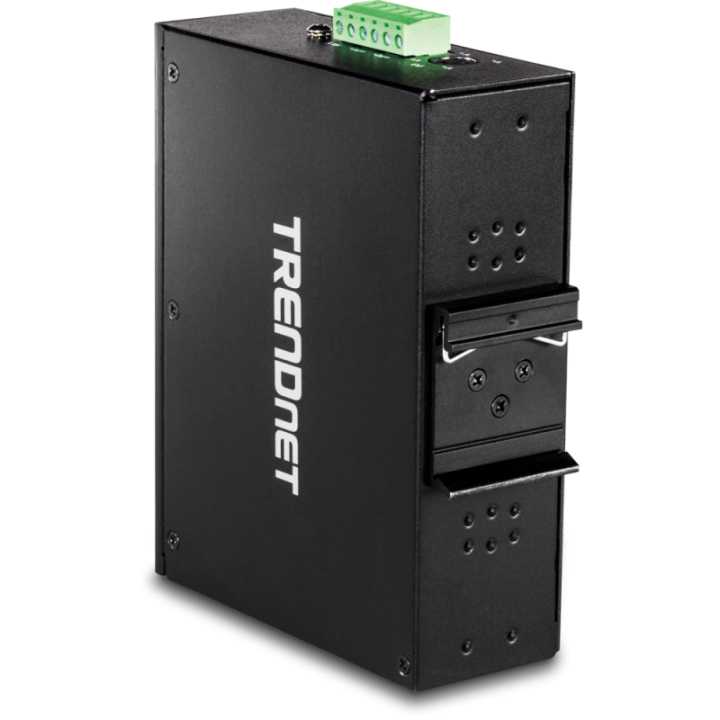

Includes DIN-rail and wall mounts
Operating temperature range of -40° – 75°C (-40° – 167°F)

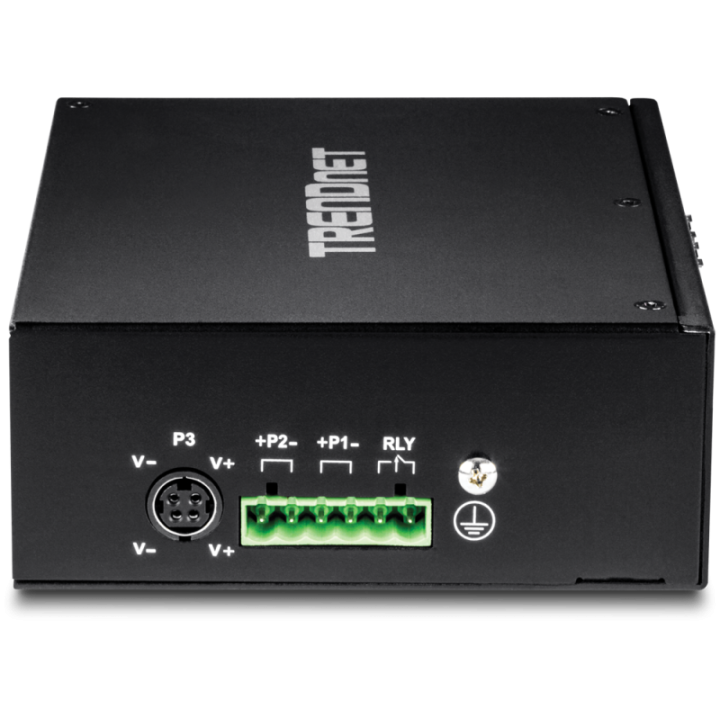

Dual redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (models: TI-S24048 / 48VDC3000)
